24v 12v 1500rpm 600rpm 35w Dc Gear Motor With 13ppr Encoder High Torque Low Rpm

Brand Name : TYHE

Model Number : TJP37RO

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : 37mm diameter

Voltage : 12-24V

Speed : 200rpm 250rpm or Customized

Torque : 1.85N.m

Gear material : Powder metallurgy steel gears

Commutation : Brush brushed

Type : DC Gear Motor, Micro Motor

Keywords : D37 24v 12v 1500rpm 600rpm 35w High Torque Low Rpm 10kg 15kg Brush Dc Gear Motor With 13ppr Encoder

Contact Now

Products Description

D37 24v 12v 1500rpm 600rpm 35w High Torque Low Rpm 10kg 15kg Brush Dc Gear Motor With 13ppr Encoder

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
ZY3864 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 553.8 5.95 102.67 308.00 615.4 6.68 103.72 311.16
22.5 73 9.3 387.1 5.37 132.39 397.16 430.1 6.02 133.74 401.23
22.5 73 11.8 305.1 5.37 167.97 503.92 339.0 6.02 169.70 509.09
22.5 73 14.2 253.5 5.37 202.14 606.41 281.7 6.02 204.21 612.63
22.5 73 17.4 206.9 5.37 247.69 743.07 229.9 6.02 250.23 750.69
24.5 65.6 21.8 165.1 4.82 278.87 836.60 183.5 5.41 281.73 845.18
24.5 65.6 27.5 130.9 4.82 351.78 1055.34 145.5 5.41 355.39 1066.16
24.5 65.6 36.6 98.4 4.82 468.19 1404.56 109.3 5.41 472.99 1418.97
24.5 65.6 40.4 89.1 4.82 516.80 1550.39 99.0 5.41 522.10 1566.29
26.5 59 58.1 62.0 4.34 668.44 2005.32 68.8 4.87 675.30 2025.89
26.5 59 73.4 49.0 4.34 844.47 2500.00 54.5 4.87 853.13 2500.00
26.5 59 83 43.4 4.34 954.92 2500.00 48.2 4.87 964.71 2500.00
26.5 59 89 40.4 4.34 1023.95 2500.00 44.9 4.87 1034.45 2500.00
26.5 59 95 37.9 4.34 1092.98 2500.00 42.1 4.87 1104.19 2500.00
26.5 59 103 35.0 4.34 1185.02 2500.00 38.8 4.87 1197.17 2500.00
29.5 53 119 30.3 3.90 1229.87 2500.00 33.6 4.37 1242.48 2500.00
29.5 53 136 26.5 3.90 1405.56 2500.00 29.4 4.37 1419.98 2500.00
29.5 53 171 21.1 3.90 1767.29 2500.00 23.4 4.37 1785.41 2500.00
29.5 53 194 18.6 3.90 2004.99 2500.00 20.6 4.37 2025.55 2500.00
29.5 53 207 17.4 3.90 2139.35 2500.00 19.3 4.37 2161.29 2500.00
29.5 53 221 16.3 3.90 2284.04 2500.00 18.1 4.37 2307.46 2500.00
29.5 53 242 14.9 3.90 2500.00 2500.00 16.5 4.37 2500.00 2500.00
29.5 53 277 13.0 3.90 2500.00 2500.00 14.4 4.37 2500.00 2500.00
29.5 53 305 11.8 3.90 2500.00 2500.00 13.1 4.37 2500.00 2500.00
32.5 47.8 350 10.3 3.51 2500.00 2500.00 11.4 3.94 2500.00 2500.00
32.5 47.8 422 8.5 3.51 2500.00 2500.00 9.5 3.94 2500.00 2500.00
32.5 47.8 465 7.7 3.51 2500.00 2500.00 8.6 3.94 2500.00 2500.00
32.5 47.8 513 7.0 3.51 2500.00 2500.00 7.8 3.94 2500.00 2500.00
32.5 47.8 532 6.8 3.51 2500.00 2500.00 7.5 3.94 2500.00 2500.00
32.5 47.8 586 6.1 3.51 2500.00 2500.00 6.8 3.94 2500.00 2500.00
32.5 47.8 712 5.1 3.51 2500.00 2500.00 5.6 3.94 2500.00 2500.00
32.5 47.8 784 4.6 3.51 2500.00 2500.00 5.1 3.94 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 6.62 102.67 308.00 984.6 13.57 131.63 394.88
22.5 73 9.3 430.1 5.96 132.39 397.16 688.2 12.23 169.73 509.18
22.5 73 11.8 339.0 5.96 167.97 503.92 542.4 12.23 215.35 646.05
22.5 73 14.2 281.7 5.96 202.14 606.41 450.7 12.23 259.15 777.45
22.5 73 17.4 229.9 5.96 247.69 743.07 367.8 12.23 317.55 952.65
24.5 65.6 21.8 183.5 5.36 278.87 836.60 293.6 10.99 357.52 1072.56
24.5 65.6 27.5 145.5 5.36 351.78 1055.34 232.7 10.99 451.00 1353.00
24.5 65.6 36.6 109.3 5.36 468.19 1404.56 174.9 10.99 600.24 1800.72
24.5 65.6 40.4 99.0 5.36 516.80 1550.39 158.4 10.99 662.56 1987.68
26.5 59 58.1 68.8 4.82 668.44 2005.32 110.2 9.88 856.98 2500.00
26.5 59 73.4 54.5 4.82 844.47 2500.00 87.2 9.88 1082.65 2500.00
26.5 59 83 48.2 4.82 954.92 2500.00 77.1 9.88 1224.25 2500.00
26.5 59 89 44.9 4.82 1023.95 2500.00 71.9 9.88 1312.75 2500.00
26.5 59 95 42.1 4.82 1092.98 2500.00 67.4 9.88 1401.25 2500.00
26.5 59 103 38.8 4.82 1185.02 2500.00 62.1 9.88 1519.25 2500.00
29.5 53 119 33.6 4.33 1229.87 2500.00 53.8 8.88 1576.75 2500.00
29.5 53 136 29.4 4.33 1405.56 2500.00 47.1 8.88 1802.00 2500.00
29.5 53 171 23.4 4.33 1767.29 2500.00 37.4 8.88 2265.75 2500.00
29.5 53 194 20.6 4.33 2004.99 2500.00 33.0 8.88 2500.00 2500.00
29.5 53 207 19.3 4.33 2139.35 2500.00 30.9 8.88 2500.00 2500.00
29.5 53 221 18.1 4.33 2284.04 2500.00 29.0 8.88 2500.00 2500.00
29.5 53 242 16.5 4.33 2500.00 2500.00 26.4 8.88 2500.00 2500.00
29.5 53 277 14.4 4.33 2500.00 2500.00 23.1 8.88 2500.00 2500.00
29.5 53 305 13.1 4.33 2500.00 2500.00 21.0 8.88 2500.00 2500.00
32.5 47.8 350 11.4 3.90 2500.00 2500.00 18.3 8.01 2500.00 2500.00
32.5 47.8 422 9.5 3.90 2500.00 2500.00 15.2 8.01 2500.00 2500.00
32.5 47.8 465 8.6 3.90 2500.00 2500.00 13.8 8.01 2500.00 2500.00
32.5 47.8 513 7.8 3.90 2500.00 2500.00 12.5 8.01 2500.00 2500.00
32.5 47.8 532 7.5 3.90 2500.00 2500.00 12.0 8.01 2500.00 2500.00
32.5 47.8 586 6.8 3.90 2500.00 2500.00 10.9 8.01 2500.00 2500.00
32.5 47.8 712 5.6 3.90 2500.00 2500.00 9.0 8.01 2500.00 2500.00
32.5 47.8 784 5.1 3.90 2500.00 2500.00 8.2 8.01 2500.00 2500.00

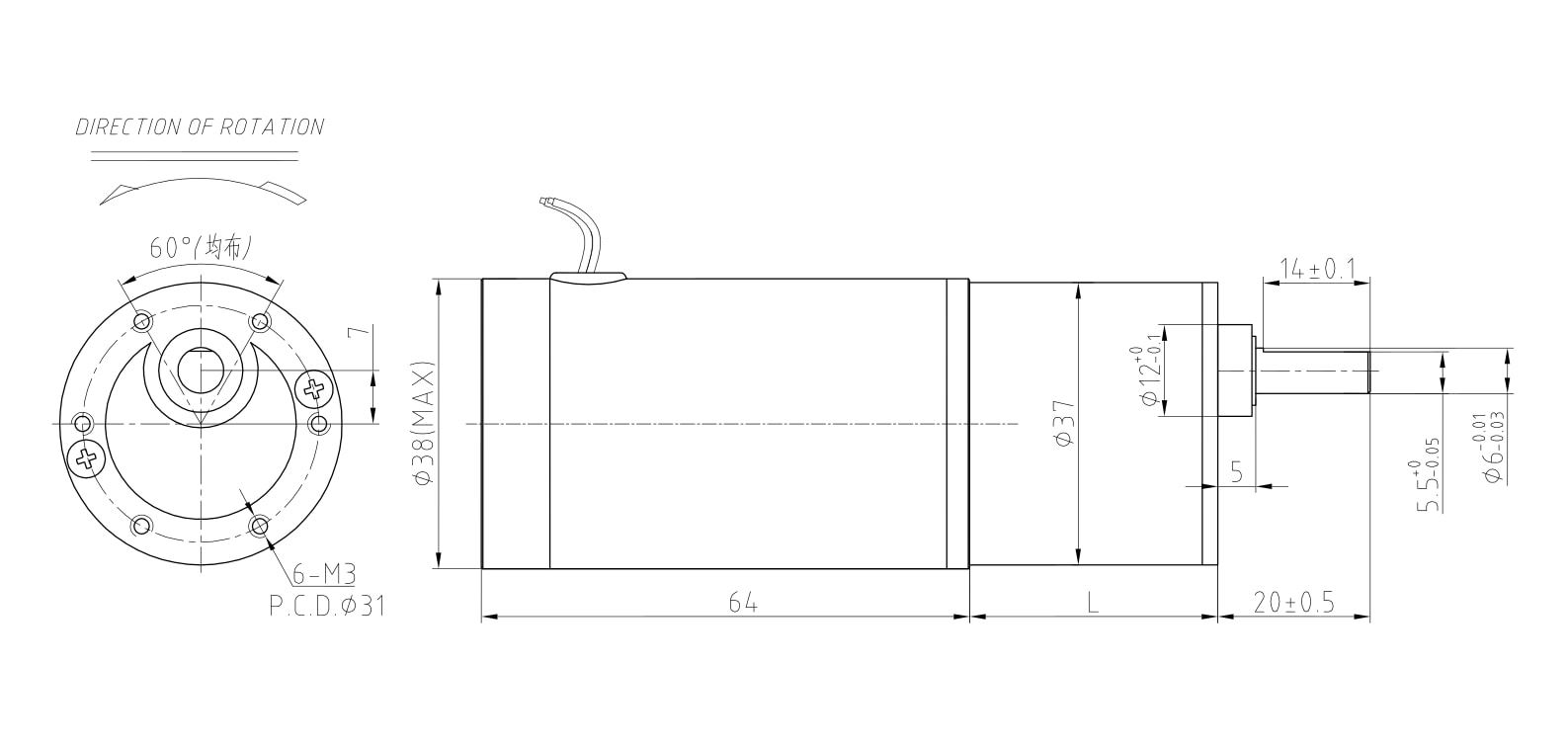

2D drawing

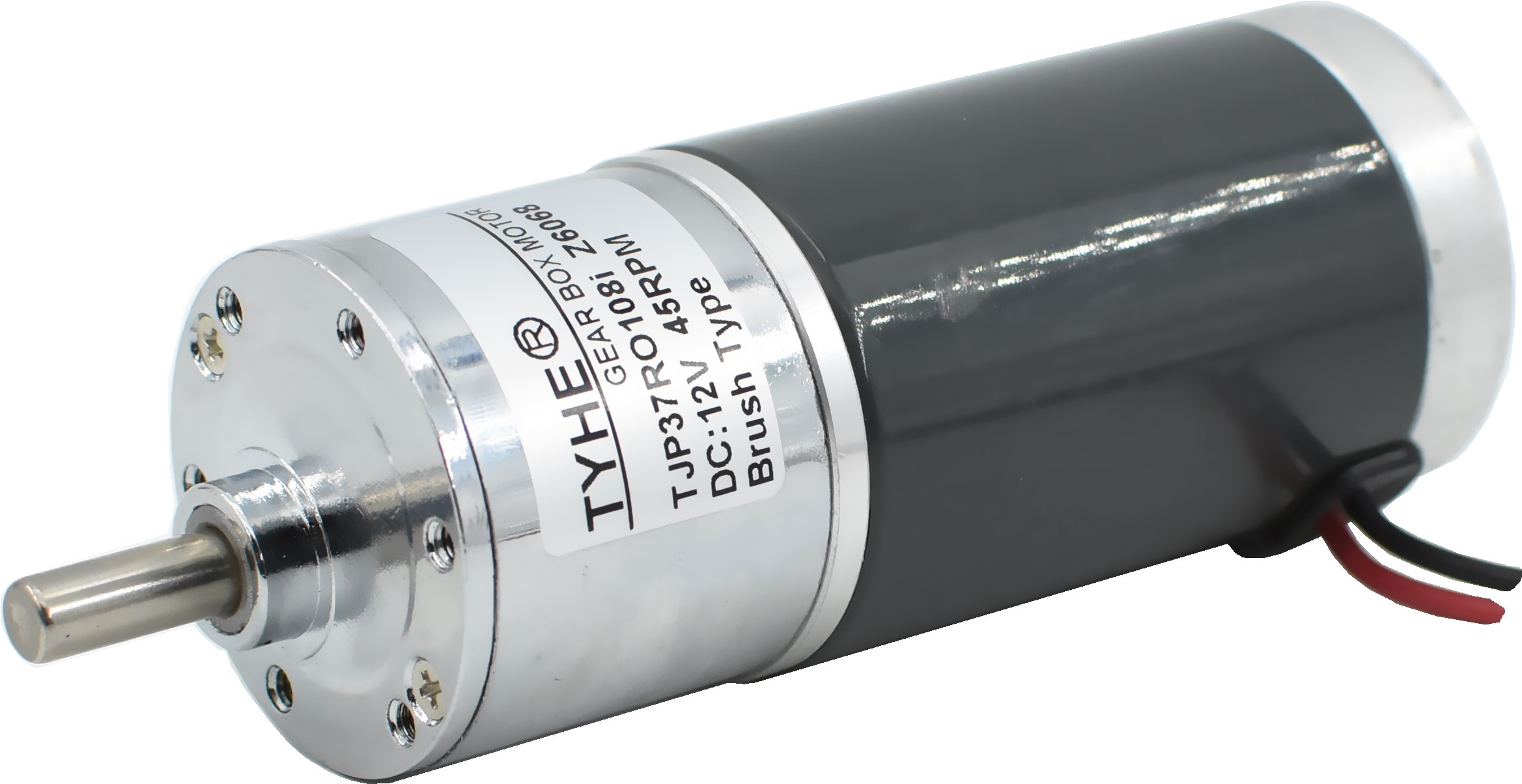

24v 12v 1500rpm 600rpm 35w Dc Gear Motor With 13ppr Encoder High Torque Low Rpm


24v 12v 1500rpm 600rpm 35w Dc Gear Motor With 13ppr Encoder High Torque Low Rpm

Please let us know your requirements and we will provide you with transmission solutions.

24v 12v 1500rpm 600rpm 35w Dc Gear Motor With 13ppr Encoder High Torque Low Rpm

24v 12v 1500rpm 600rpm 35w Dc Gear Motor With 13ppr Encoder High Torque Low Rpm
