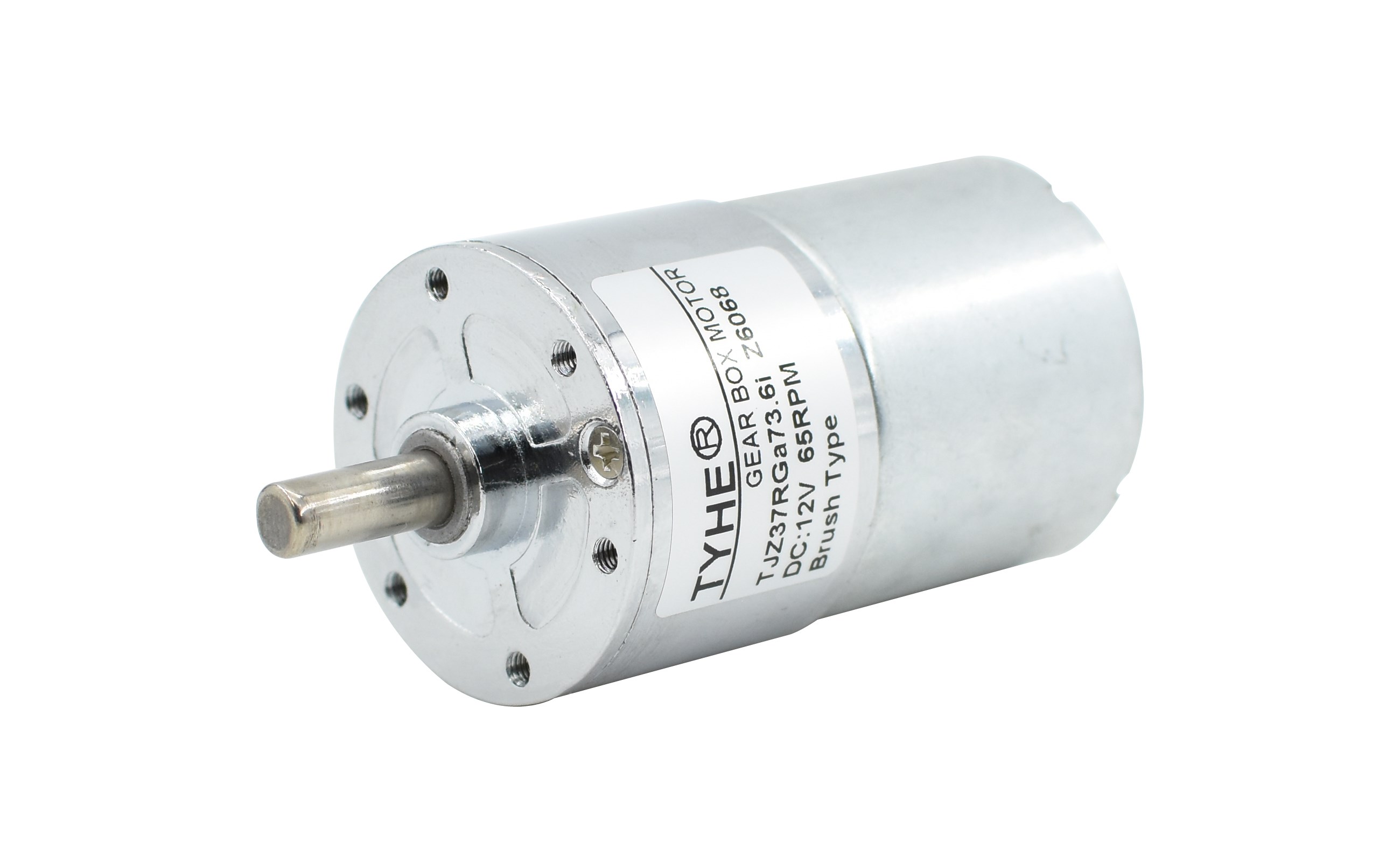

Micro 6w 5W 12v 24v Dc Gear Motor Low Rpm 10Kgcm 1160 Gear Ratio For Water Meter

Brand Name : TYHE

Model Number : TJZ37RGa

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : D37mm

Voltage : 12-24volt

Speed : customized

Torque : 2.51N.m

Gear material : Powder metallurgy, steel

Commutation : Brush brushes

Type : Gear Motor, DC Small Motor

Usage : DIY, Pan tilt

Keywords : Manufacturer micro 37mm low rpm 25kg.cm 12v 24v 10 kgcm 6w 5 watt dc gear motor with 1160 gear ratio for water meter

Contact Now

Products Description

Manufacturer micro 37mm low rpm 25kg.cm 12v 24v 10 kgcm 6w 5 watt dc gear motor with 1160 gear ratio for water meter

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37RGa φ37mm RS530 6mm-D cut 180g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 24 3500 35 2800 0.12 5.90 1.73 62.68 17.70 0.75
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-3500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 608.7 1.26 19.75 59.24 869.6 3.02 33.16 99.48
22.5 81 5.9 474.6 1.26 25.33 75.99 678.0 3.02 42.53 127.60
22.5 81 6.9 405.8 1.26 29.62 88.87 579.7 3.02 49.74 149.23
22.5 73 8.4 333.3 1.13 32.50 97.50 476.2 2.72 54.57 163.72
22.5 73 10.6 264.2 1.13 41.01 123.03 377.4 2.72 68.87 206.60
22.5 73 13.5 207.4 1.13 52.23 156.69 296.3 2.72 87.71 263.13
22.5 73 16.0 175.0 1.13 61.90 185.71 250.0 2.72 103.95 311.86
24.5 65.6 19.3 145.1 1.02 67.10 201.31 207.3 2.45 112.68 338.04
24.5 65.6 24.4 114.8 1.02 84.83 254.50 163.9 2.45 142.46 427.37
24.5 65.6 31.6 88.6 1.02 109.87 329.60 126.6 2.45 184.49 553.48
24.5 65.6 37.0 75.7 1.02 128.64 385.92 108.1 2.45 216.02 648.06
26.5 59 45.0 62.2 0.92 140.72 422.15 88.9 2.20 236.30 708.89
26.5 59 57.0 49.1 0.92 178.24 534.72 70.2 2.20 299.31 897.92
26.5 59 73.6 38.0 0.92 230.15 690.44 54.3 2.20 386.47 1159.42
26.5 59 86.0 32.6 0.92 268.92 806.77 46.5 2.20 451.59 1354.76
26.5 59 95.0 29.5 0.92 297.07 891.20 42.1 2.20 498.85 1496.54
29.5 53 105.0 26.7 0.82 294.95 884.84 38.1 1.98 495.29 1485.86
29.5 53 133.0 21.1 0.82 373.60 1120.79 30.1 1.98 627.36 1882.08
29.5 53 172.0 16.3 0.82 483.15 1449.44 23.3 1.98 811.32 2433.97
29.5 53 201.0 13.9 0.82 564.61 1693.83 19.9 1.98 948.12 2500.00
29.5 53 221.0 12.7 0.82 620.79 1862.37 18.1 1.98 1042.46 2500.00
29.5 53 244.0 11.5 0.82 685.40 2056.19 16.4 1.98 1150.95 2500.00
32.5 47.8 245.0 11.4 0.74 620.68 1862.05 16.3 1.78 1042.28 2500.00
32.5 47.8 310.0 9.0 0.74 785.35 2356.06 12.9 1.78 1318.80 2500.00
32.5 47.8 401.0 7.0 0.74 1015.89 2500.00 10.0 1.78 1705.93 2500.00
32.5 47.8 469.0 6.0 0.74 1188.16 2500.00 8.5 1.78 1995.22 2500.00
32.5 47.8 516.0 5.4 0.74 1307.23 2500.00 7.8 1.78 2195.17 2500.00
32.5 47.8 569.0 4.9 0.74 1441.50 2500.00 7.0 1.78 2420.64 2500.00
32.5 47.8 627.0 4.5 0.74 1588.44 2500.00 6.4 1.78 2500.00 2500.00
32.5 43 1093.0 2.6 0.67 2490.95 2500.00 3.7 1.60 2500.00 2500.00
32.5 43 1205.0 2.3 0.67 2500.00 2500.00 3.3 1.60 2500.00 2500.00
32.5 43 1328.0 2.1 0.67 2500.00 2500.00 3.0 1.60 2500.00 2500.00
32.5 43 1463.0 1.9 0.67 2500.00 2500.00 2.7 1.60 2500.00 2500.00
32.5 43 1613.0 1.7 0.67 2500.00 2500.00 2.5 1.60 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 608.7 1.40 21.98 65.95 869.6 3.09 33.98 101.94
22.5 81 5.9 474.6 1.40 28.20 84.59 678.0 3.09 43.58 130.75
22.5 81 6.9 405.8 1.40 32.98 98.93 579.7 3.09 50.97 152.92
22.5 73 8.4 333.3 1.3 36.18 108.54 476.19 2.79 55.92 167.77
22.5 73 10.6 264.2 1.3 45.65 136.96 377.36 2.79 70.57 211.71
22.5 73 13.5 207.4 1.3 58.14 174.43 296.30 2.79 89.88 269.63
22.5 73 16.0 175.0 1.3 68.91 206.74 250.00 2.79 106.52 319.56
24.5 65.6 19.3 145.1 1.13 74.70 224.10 207.3 2.51 115.47 346.40
24.5 65.6 24.4 114.8 1.13 94.44 283.31 163.9 2.51 145.98 437.94
24.5 65.6 31.6 88.6 1.13 122.30 366.91 126.6 2.51 189.05 567.16
24.5 65.6 37.0 75.7 1.13 143.20 429.61 108.1 2.51 221.36 664.08
26.5 59 45.0 62.2 1.0 156.65 469.94 88.89 2.25 242.14 726.41
26.5 59 57.0 49.1 1.0 198.42 595.25 70.18 2.25 306.71 920.12
26.5 59 73.6 38.0 1.0 256.20 768.60 54.35 2.25 396.03 1188.08
26.5 59 86.0 32.6 1.0 299.37 898.10 46.51 2.25 462.75 1388.25
26.5 59 95.0 29.5 1.0 330.70 992.09 42.11 2.25 511.18 1533.53
29.5 53 105.0 26.7 0.92 328.34 985.01 38.1 2.02 507.53 1522.58
29.5 53 133.0 21.1 0.92 415.89 1247.67 30.1 2.02 642.87 1928.61
29.5 53 172.0 16.3 0.92 537.84 1613.53 23.3 2.02 831.38 2494.14
29.5 53 201.0 13.9 0.92 628.53 1885.58 19.9 2.02 971.55 2500.00
29.5 53 221.0 12.7 0.92 691.07 2073.20 18.1 2.02 1068.23 2500.00
29.5 53 244.0 11.5 0.92 762.99 2288.96 16.4 2.02 1179.40 2500.00
32.5 47.8 245.0 11.4 0.8 690.95 2072.85 16.33 1.83 1068.04 2500.00
32.5 47.8 310.0 9.0 0.8 874.26 2500.00 12.90 1.83 1351.40 2500.00
32.5 47.8 401.0 7.0 0.8 1130.90 2500.00 9.98 1.83 1748.10 2500.00
32.5 47.8 469.0 6.0 0.8 1322.67 2500.00 8.53 1.83 2044.54 2500.00
32.5 47.8 516.0 5.4 0.8 1455.22 2500.00 7.75 1.83 2249.43 2500.00
32.5 47.8 569.0 4.9 0.8 1604.69 2500.00 7.03 1.83 2480.48 2500.00
32.5 47.8 627.0 4.5 0.8 1768.27 2500.00 6.38 1.83 2500.00 2500.00
32.5 43 1093.0 2.6 0.74 2500.00 2500.00 3.7 1.64 2500.00 2500.00
32.5 43 1205.0 2.3 0.74 2500.00 2500.00 3.3 1.64 2500.00 2500.00
32.5 43 1328.0 2.1 0.74 2500.00 2500.00 3.0 1.64 2500.00 2500.00
32.5 43 1463.0 1.9 0.74 2500.00 2500.00 2.7 1.64 2500.00 2500.00
32.5 43 1613.0 1.7 0.74 2500.00 2500.00 2.5 1.64 2500.00 2500.00

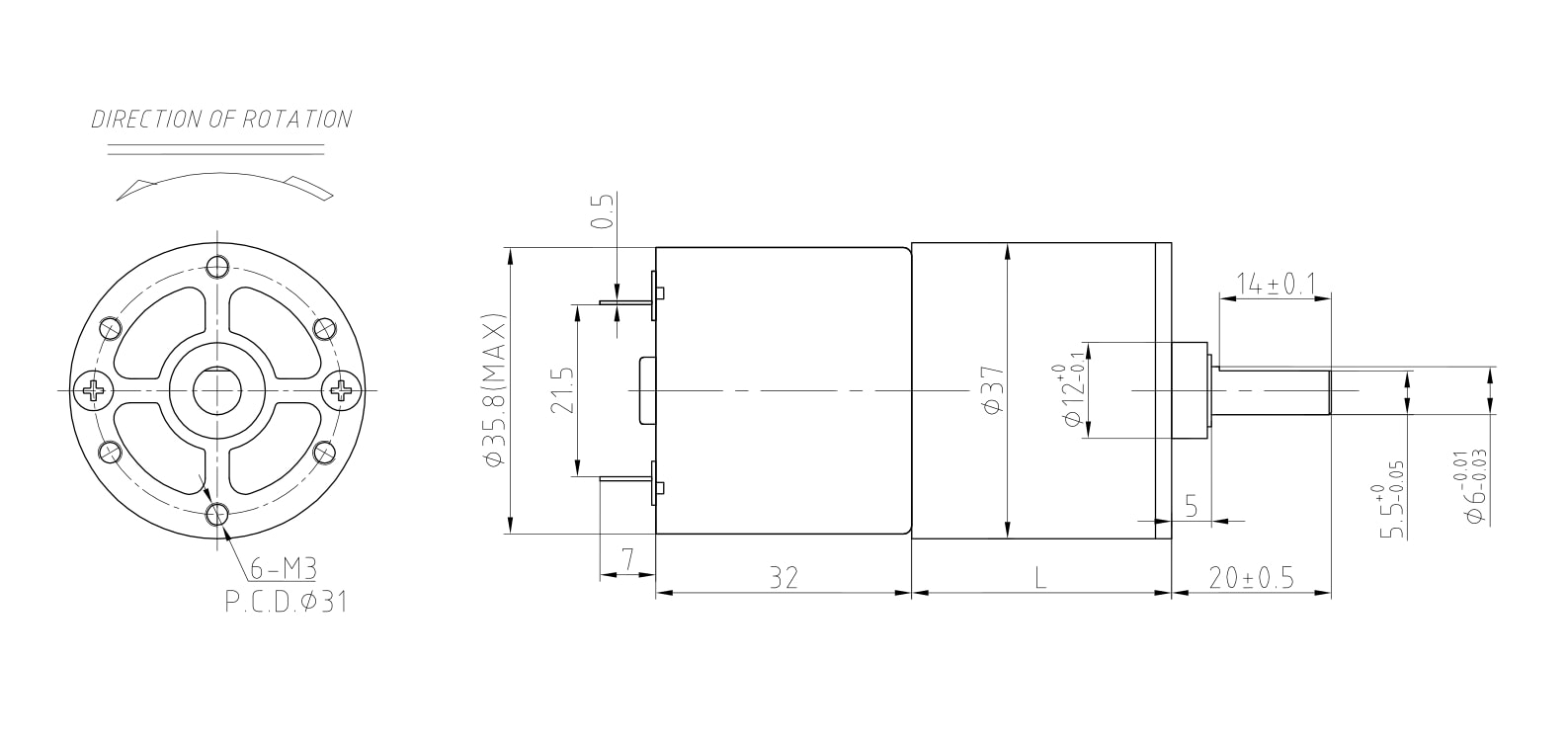

2D drawing

Micro 6w 5W 12v 24v Dc Gear Motor Low Rpm 10Kgcm 1160 Gear Ratio For Water Meter


Micro 6w 5W 12v 24v Dc Gear Motor Low Rpm 10Kgcm 1160 Gear Ratio For Water Meter

Please let us know your requirements and we will provide you with transmission solutions.

Micro 6w 5W 12v 24v Dc Gear Motor Low Rpm 10Kgcm 1160 Gear Ratio For Water Meter

Micro 6w 5W 12v 24v Dc Gear Motor Low Rpm 10Kgcm 1160 Gear Ratio For Water Meter
