Low Noise 17mm 6v 24v DC Gear Motor With Encoder 20kgcm 1.5 Watt 60rpm 70Rpm

Product Categories
Wenzhou Tyhe Motor Co., Ltd.
Contact Now

Low Noise 17mm 6v 24v DC Gear Motor With Encoder 20kgcm 1.5 Watt 60rpm 70Rpm

Brand Name : TYHE

Model Number : TJZ17RU

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 150000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : D17mm

Voltage : 3v 5v 6v 9volt

Speed : 1-1000rpm

Torque : 0.53N.m

Gear material : Powder

Commutation : Brush

Type : DC Gear Motor, Micro Motor

Usage : Electric Bicycle

Keywords : Custom 17mm 3v 1.5v 6v 24v Low Noise High Torque 20kgcm 1.5 Watt 60rpm 70 Rpm Dc Geared Motor With Encoder

Contact Now

Products Description

Custom 17mm 3v 1.5v 6v 24v Low Noise High Torque 20kgcm 1.5 Watt 60rpm 70 Rpm Dc Geared Motor With Encoder

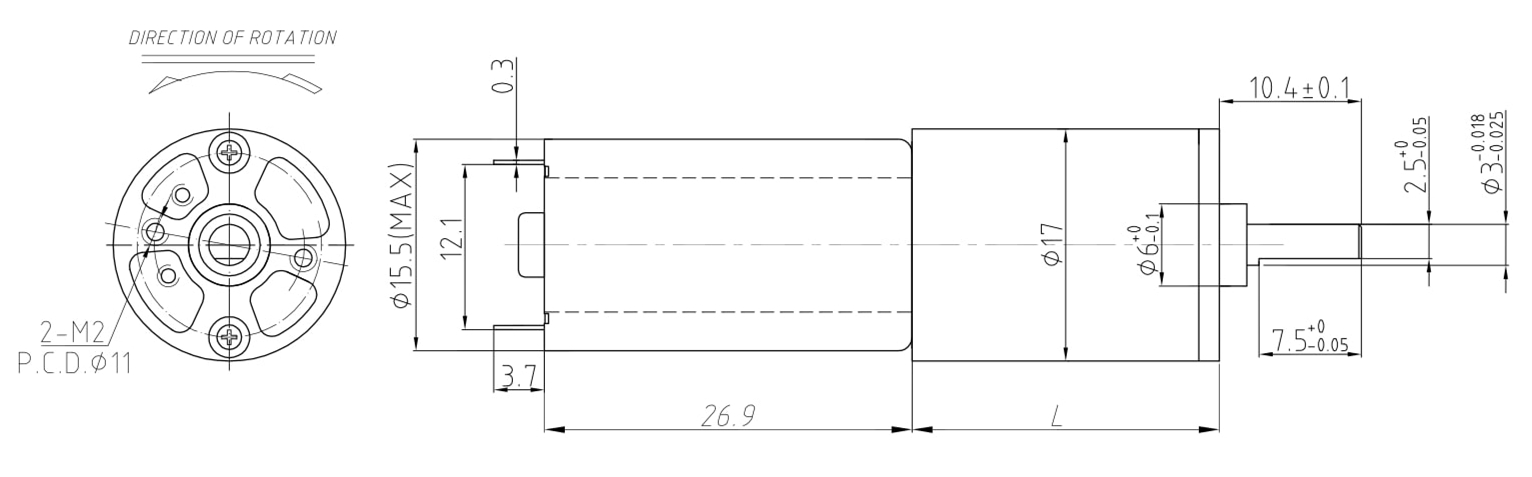

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ17RU φ17mm FF050 3mm-D cut 60g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
FF050 6 7500 65 6000 0.12 0.70 0.44 61.08 2.10 0.71
FF050 3 5000 50 4000 0.08 0.37 0.15 64.57 1.11 0.38
FF050 24 15000 20 12000 0.08 0.95 1.19 63.77 2.85 0.53
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 6V-7500RPM Input 3V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 1363.6 0.36 2.49 7.48 909.1 0.13 1.32 3.96
16.5 73 9.1 659.3 0.32 4.65 13.95 439.6 0.11 2.46 7.37
16.5 65.5 19.1 314.1 0.29 8.76 26.27 209.4 0.10 4.63 13.89
16.5 59 40.0 150.0 0.26 16.52 49.56 100.0 0.09 8.73 26.20
18.5 53 83.5 71.9 0.23 30.98 92.94 47.9 0.08 16.37 49.12
20.5 47.8 175.0 34.3 0.21 58.56 175.67 22.9 0.07 30.95 92.85
22.5 43 365.0 16.4 0.19 109.87 329.60 11.0 0.07 58.07 174.21
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 24V-15000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 2727.3 0.97 3.39 10.16
16.5 73 9.1 1318.7 0.87 6.31 18.93
16.5 65.5 19.1 628.3 0.78 11.88 35.65
16.5 59 40.0 300.0 0.70 22.42 67.26
18.5 53 83.5 143.7 0.63 42.04 126.13
20.5 47.8 175.0 68.6 0.57 79.47 238.40
22.5 43 365.0 32.9 0.51 149.10 447.31

Low Noise 17mm 6v 24v DC Gear Motor With Encoder 20kgcm 1.5 Watt 60rpm 70Rpm


Low Noise 17mm 6v 24v DC Gear Motor With Encoder 20kgcm 1.5 Watt 60rpm 70Rpm

Please let us know your requirements and we will provide you with transmission solutions.

Low Noise 17mm 6v 24v DC Gear Motor With Encoder 20kgcm 1.5 Watt 60rpm 70RpmLow Noise 17mm 6v 24v DC Gear Motor With Encoder 20kgcm 1.5 Watt 60rpm 70Rpm
