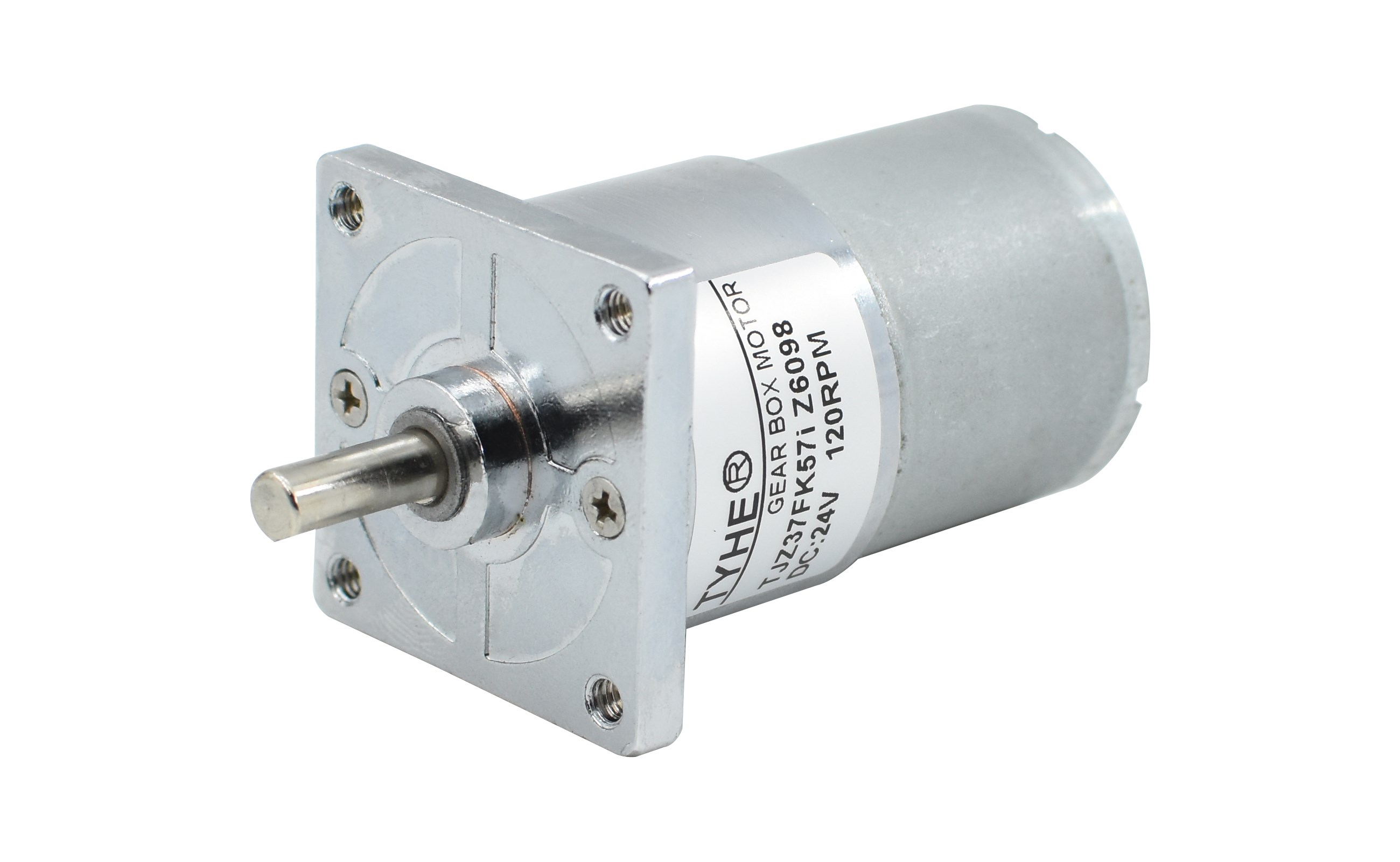

24v Dc Gear Motor 5500rpm High Rpm Low Torque 7w 8w For Home Appliance

Brand Name : TYHE

Model Number : TJZ37FK

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : D37mm

Voltage : 3V-24V

Speed : customized

Torque : 2.51N.m

Gear material : Powder metallurgy, steel

Commutation : brushed

Type : Gear Motor, min Motor

Usage : Optical Equipment

Keywords : Customizable 37mm 12v 24v 5500rpm High Rpm 10kg Low Torque 8rpm 7w 8w 50 Rpm Brushes Dc Gear Motor For Home Appliance

Contact Now

Products Description

Customizable 37mm 12v 24v 5500rpm High Rpm 10kg Low Torque 8rpm 7w 8w 50 Rpm Brushes Dc Gear Motor For Home Appliance

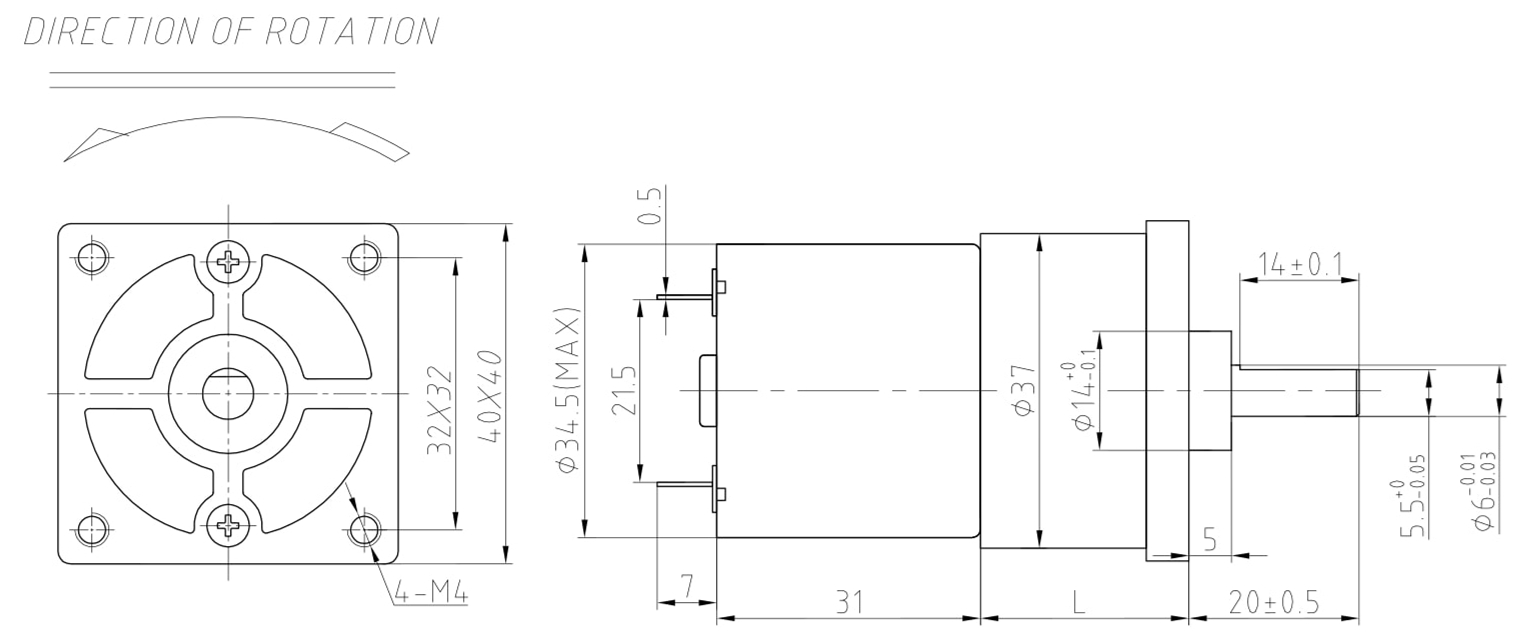

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37FK φ37mm 30-C 6mm-D cut 190g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3530 12 5500 60 4400 0.23 3.81 1.76 62.69 11.43 1.72
ZY3530 12 6500 65 5200 0.31 4.18 2.28 61.18 12.54 2.00
ZY3530 24 3500 14 2800 0.06 3.17 0.93 62.63 9.51 0.49
ZY3530 24 5200 22 4160 0.11 4.01 1.75 63.47 12.03 0.98
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 956.5 1.42 14.20 42.59 1130.4 1.84 15.57 46.72
22.5 81 5.9 745.8 1.42 18.21 54.62 881.4 1.84 19.98 59.93
22.5 81 6.9 637.7 1.42 21.29 63.88 753.6 1.84 23.36 70.09
22.5 73 8.4 523.8 1.28 23.36 70.09 619.0 1.66 25.63 76.90
22.5 73 10.6 415.1 1.28 29.48 88.45 490.6 1.66 32.34 97.03
22.5 73 13.5 325.9 1.28 37.55 112.64 385.2 1.66 41.19 123.58
22.5 73 16.0 275.0 1.28 44.50 133.50 325.0 1.66 48.82 146.47
24.5 65.6 19.3 228.0 1.15 48.24 144.71 269.4 1.49 52.92 158.77
24.5 65.6 24.4 180.3 1.15 60.98 182.95 213.1 1.49 66.91 200.72
24.5 65.6 31.6 139.2 1.15 78.98 236.94 164.6 1.49 86.65 259.95
24.5 65.6 37.0 118.9 1.15 92.48 277.43 140.5 1.49 101.46 304.37
26.5 59 45.0 97.8 1.04 101.16 303.47 115.6 1.34 110.98 332.94
26.5 59 57.0 77.2 1.04 128.13 384.39 91.2 1.34 140.57 421.72
26.5 59 73.6 59.8 1.04 165.45 496.34 70.7 1.34 181.51 544.54
26.5 59 86.0 51.2 1.04 193.32 579.96 60.5 1.34 212.09 636.28
26.5 59 95.0 46.3 1.04 213.55 640.65 54.7 1.34 234.29 702.87
29.5 53 105.0 41.9 0.93 212.03 636.08 49.5 1.21 232.62 697.85
29.5 53 133.0 33.1 0.93 268.57 805.70 39.1 1.21 294.65 883.94
29.5 53 172.0 25.6 0.93 347.32 1041.96 30.2 1.21 381.05 1143.15
29.5 53 201.0 21.9 0.93 405.88 1217.64 25.9 1.21 445.30 1335.89
29.5 53 221.0 19.9 0.93 446.27 1338.80 23.5 1.21 489.60 1468.81
29.5 53 244.0 18.0 0.93 492.71 1478.13 21.3 1.21 540.56 1621.67
32.5 47.8 245.0 18.0 0.84 446.19 1338.57 21.2 1.09 489.52 1468.56
32.5 47.8 310.0 14.2 0.84 564.57 1693.70 16.8 1.09 619.39 1858.18
32.5 47.8 401.0 11.0 0.84 730.29 2190.88 13.0 1.09 801.21 2403.64
32.5 47.8 469.0 9.4 0.84 854.13 2500.00 11.1 1.09 937.08 2500.00
32.5 47.8 516.0 8.5 0.84 939.73 2500.00 10.1 1.09 1030.99 2500.00
32.5 47.8 569.0 7.7 0.84 1036.25 2500.00 9.1 1.09 1136.88 2500.00
32.5 47.8 627.0 7.0 0.84 1141.88 2500.00 8.3 1.09 1252.77 2500.00
32.5 43 1093.0 4.0 0.75 1790.66 2500.00 4.8 0.98 1964.56 2500.00
32.5 43 1205.0 3.7 0.75 1974.15 2500.00 4.3 0.98 2165.87 2500.00
32.5 43 1328.0 3.3 0.75 2175.66 2500.00 3.9 0.98 2386.95 2500.00
32.5 43 1463.0 3.0 0.75 2396.83 2500.00 3.6 0.98 2500.00 2500.00
32.5 43 1613.0 2.7 0.75 2500.00 2500.00 3.2 0.98 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5200RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 608.7 0.75 11.81 35.43 904.3 1.41 14.94 44.82
22.5 81 5.9 474.6 0.75 15.15 45.45 705.1 1.41 19.16 57.49
22.5 81 6.9 405.8 0.75 17.72 53.15 602.9 1.41 22.41 67.24
22.5 73 8.4 333.3 0.68 19.44 58.32 495.2 1.28 24.59 73.77
22.5 73 10.6 264.2 0.68 24.53 73.59 392.5 1.28 31.03 93.09
22.5 73 13.5 207.4 0.68 31.24 93.72 308.1 1.28 39.52 118.56
22.5 73 16.0 175.0 0.68 37.03 111.08 260.0 1.28 46.84 140.51
24.5 65.6 19.3 145.1 0.61 40.13 120.40 215.5 1.15 50.77 152.31
24.5 65.6 24.4 114.8 0.61 50.74 152.22 170.5 1.15 64.19 192.56
24.5 65.6 31.6 88.6 0.61 65.71 197.14 131.6 1.15 83.13 249.38
24.5 65.6 37.0 75.7 0.61 76.94 230.83 112.4 1.15 97.33 291.99
26.5 59 45.0 62.2 0.55 84.16 252.49 92.4 1.03 106.47 319.40
26.5 59 57.0 49.1 0.55 106.61 319.82 73.0 1.03 134.86 404.57
26.5 59 73.6 38.0 0.55 137.65 412.96 56.5 1.03 174.13 522.39
26.5 59 86.0 32.6 0.55 160.85 482.54 48.4 1.03 203.47 610.40
26.5 59 95.0 29.5 0.55 177.68 533.04 43.8 1.03 224.76 674.28
29.5 53 105.0 26.7 0.49 176.41 529.23 39.6 0.93 223.16 669.47
29.5 53 133.0 21.1 0.49 223.45 670.36 31.3 0.93 282.66 847.99
29.5 53 172.0 16.3 0.49 288.98 866.93 24.2 0.93 365.55 1096.65
29.5 53 201.0 13.9 0.49 337.70 1013.10 20.7 0.93 427.19 1281.56
29.5 53 221.0 12.7 0.49 371.30 1113.91 18.8 0.93 469.69 1409.07
29.5 53 244.0 11.5 0.49 409.94 1229.83 17.0 0.93 518.57 1555.72
32.5 47.8 245.0 11.4 0.44 371.24 1113.72 17.0 0.83 469.61 1408.83
32.5 47.8 310.0 9.0 0.44 469.73 1409.19 13.4 0.83 594.20 1782.61
32.5 47.8 401.0 7.0 0.44 607.62 1822.86 10.4 0.83 768.63 2305.89
32.5 47.8 469.0 6.0 0.44 710.66 2131.97 8.9 0.83 898.97 2500.00
32.5 47.8 516.0 5.4 0.44 781.87 2345.62 8.1 0.83 989.06 2500.00
32.5 47.8 569.0 4.9 0.44 862.18 2500.00 7.3 0.83 1090.65 2500.00
32.5 47.8 627.0 4.5 0.44 950.07 2500.00 6.6 0.83 1201.82 2500.00
32.5 43 1093.0 2.6 0.40 1489.87 2500.00 3.8 0.75 1884.66 2500.00
32.5 43 1205.0 2.3 0.40 1642.54 2500.00 3.5 0.75 2077.78 2500.00
32.5 43 1328.0 2.1 0.40 1810.20 2500.00 3.1 0.75 2289.87 2500.00
32.5 43 1463.0 1.9 0.40 1994.22 2500.00 2.8 0.75 2500.00 2500.00
32.5 43 1613.0 1.7 0.40 2198.68 2500.00 2.6 0.75 2500.00 2500.00

24v Dc Gear Motor 5500rpm High Rpm Low Torque 7w 8w For Home Appliance​


24v Dc Gear Motor 5500rpm High Rpm Low Torque 7w 8w For Home Appliance

Please let us know your requirements and we will provide you with transmission solutions.

24v Dc Gear Motor 5500rpm High Rpm Low Torque 7w 8w For Home Appliance

24v Dc Gear Motor 5500rpm High Rpm Low Torque 7w 8w For Home Appliance
